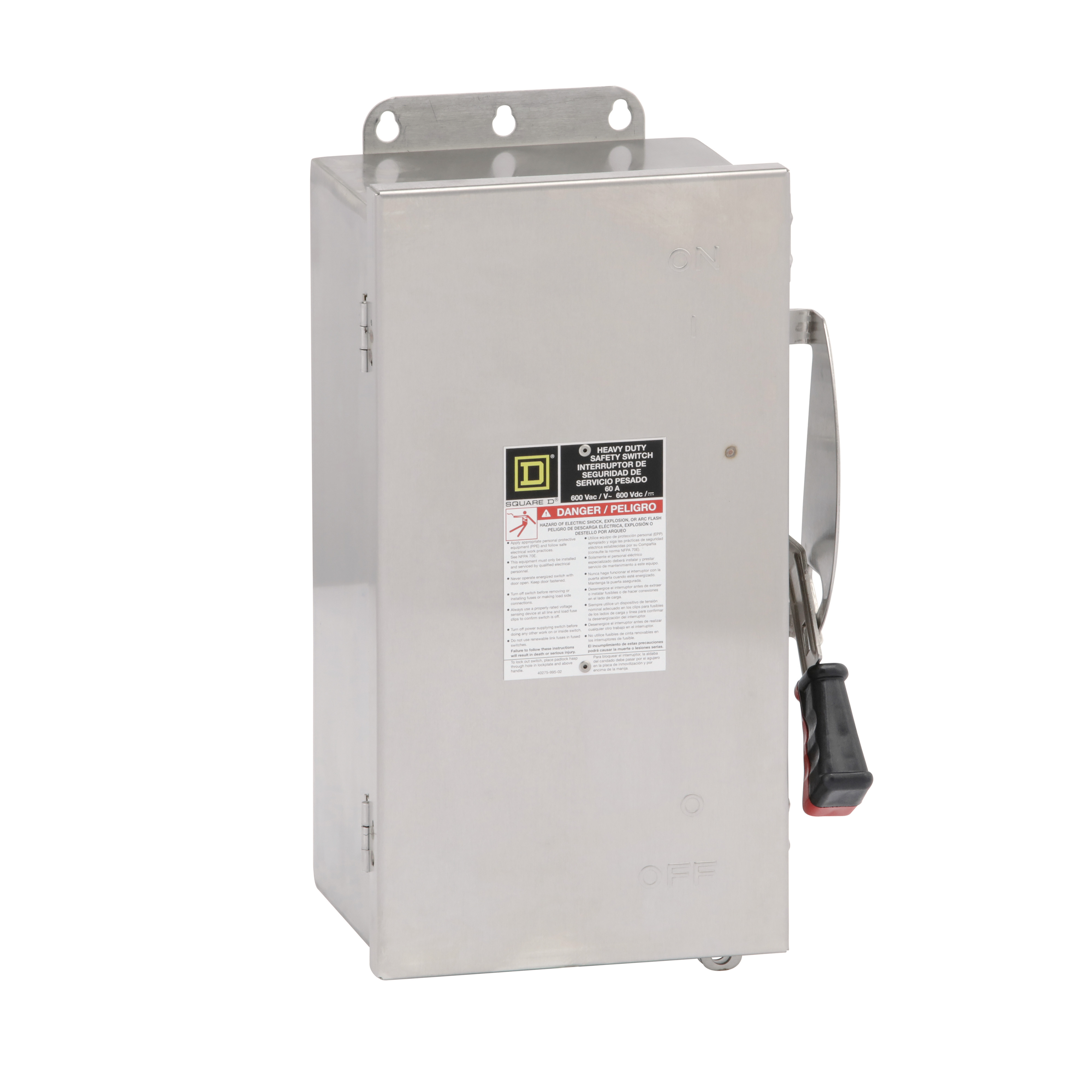

Square D™ H362DS Fusible Heavy Duty Safety Switch, 600 VAC/VDC, 60 A, 15/30 hp, 3 Poles, TPST
Heavy Duty Safety Switches
31570
MFG #: H362DS
Square D™
1800.47000
/ ea
- Action: SINGLE THROW
- Actuator Type: Handle
- Alternate Catalog Number: H362DS
- Application: HEAVY DUTY
- ARRA Compliant: N
- Buy American Compliant: N
- Catalog Number: H362DS
- Connection: AWG 14...AWG 3 COPPER-AWG 12...AWG 3 ALUMINIUM,LUGS
- Country of Origin: US
- Currency: USD
- Dimensions: 16.87 in H x 10.81 in W x 6.97 in D
- Enclosure: NEMA 4/4X/5 STAINLESS STEEL 304
- Enclosure Type: NEMA 4/4X/5
- Environmental Conditions: RAINPROOF, DUST TIGHT AND CORROSION RESISTANT (INDOOR/OUTDOOR)
- EU RoHS Indicator: Y
- Gross Volume Per Pack: 1705.00
- Gross Volume per Pack Metric: 27939.84
- Gross Volume UOM: CI
- Gross Volume UOM Metric: cm3
- Gross Weight Per Pack: 18.9600 lb
- Gross Weight per Pack Metric: 8.60
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8537109170
- Height: 8.6614 in
- Height [Metric]: 22.0980 cm
- Item Group: 00010
- Length: 20.8661 in
- Length [Metric]: 52.5780 cm
- Material: 304 Stainless Steel
- Material Composition Declaration: https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=364417&lang=en-us
- Mounting: Surface
- Mounting Type: Surface
- Number of Wires: 3
- Phase: 3
- Returnable: N
- Short Circuit Current Rating: 10/200 kA
- Size: 10.81 IN,16.87 IN,6.97 IN
- Standard: UL LISTED FILE E2875
- Sub Brand: HEAVY DUTY
- Substitute Product Catalog Number: EIK1
- Terminal Type: Lug
- Type: Fusible
- UNSPSC: 39122205
- UPC 11: 78590102366
- UPC 12: 785901023661
- Warranty Description: Contractual Warranty:18 months
- Width: 13.3858 in
- Width [Metric]: 33.7820 cm
- Stock Status: NONSTOCK
- Brand: Square D™
- Manufacturer: Schneider Electric
- Amperage Rating: 60 A
- Contact Form: TPST
- Horsepower: 15 hp, 30 hp
- Voltage Rating: 600 VAC//VDC
- Number Of Poles: 3
- 360 Degree View URL - 360(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=H362DS(3D Rendering URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Catalog 1 URL - Square_D_H322N_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - IDW_DOCUMENT_bd2a4800350a29ef7b15c158a776a1046e6e2dadf8cbf96f7ba9d5c82cfeafd4.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - 3dee742861dd1c1569707dbf4bc7f9620452b7bb.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_0IBYW91U5ZASPQM2.pdf(Install Instructions 1 URL)
- Install Instructions URL - files?p_Doc_Ref=40273-829-02(Install Instructions URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet 1 URL - Square_D_H362DS_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11003_KVADC54M86REXG0L.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_J8BN07AUWQR4CIYD.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/oeILpNIxqR0(Video)
- Applications
- Features
| HEAVY DUTY |
| HEAVY DUTY |
| Visible blades for positive blade position indication |
| Red and black handle indicates the on (red) or OFF (black) switch position |
| Side opening, left hinged covers |
| Highly visible embossed ON/OFF marking/ON/OFF labels are used on type 4x fiberglass reinforced polyester enclosures |
| Quick-make and quick-break operating mechanism |
| Standard with plated aluminum lugs which accept both Cu and Al wires |
| Front removable mechanical lugs |
| Dual cover interlock prevents the cover from being opened when the switch is ON and prevents the switch from being turned ON when the cover is open |
| An interlock bypass is provided for access by authorized personnel |
| Rainproof, dusttight and corrosion resistant |
