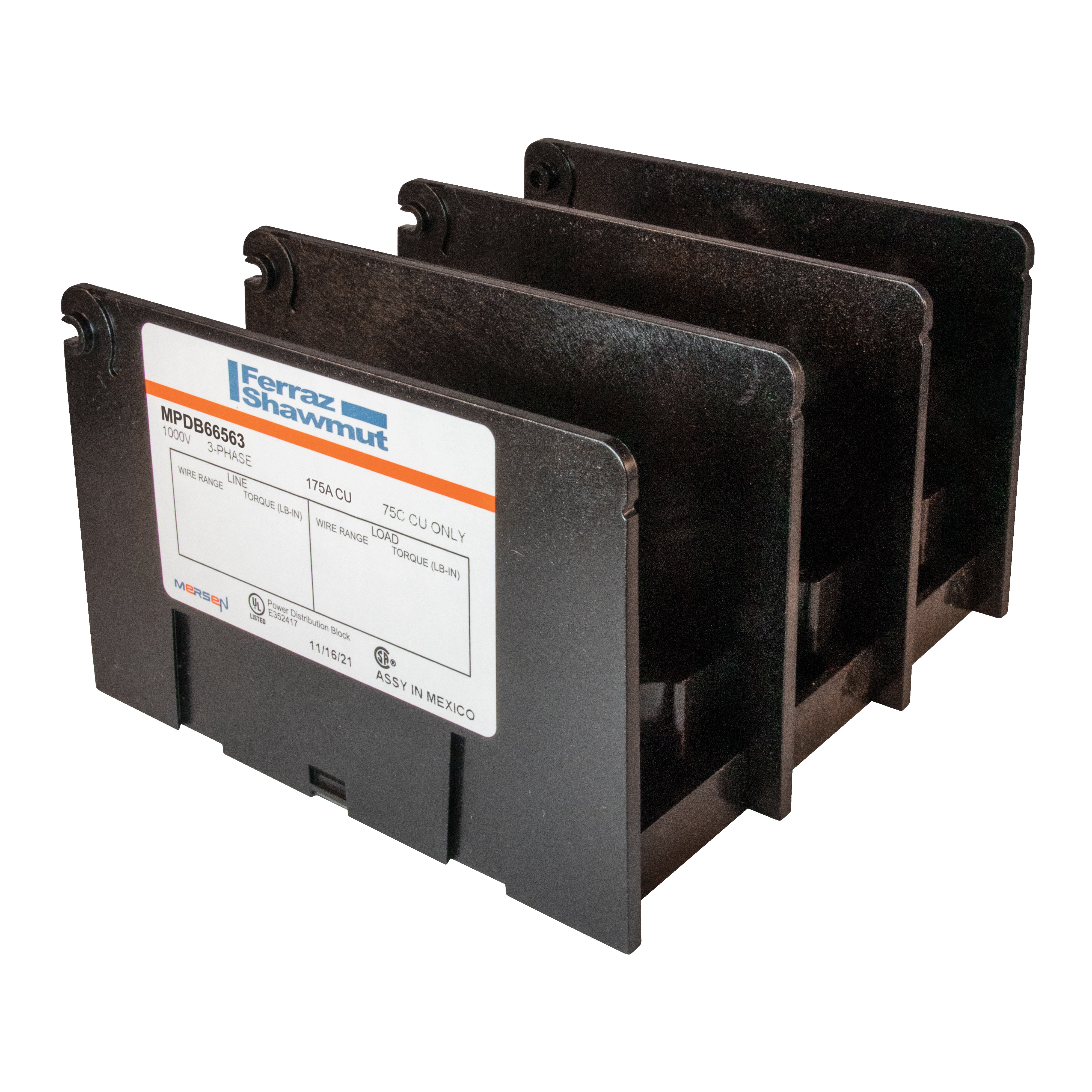

Ferraz Shawmut MPDB66563 3P CU PWR DIST BLOK
Single Pole Distribution Blocks
804581
MFG #: MPDB66563
Ferraz Shawmut
409.41000
/ ea
- Alternate Catalog Number: MPDB66563
- Application: Cable splicing Splitting primary power into secondary circuits Fixed junction tap-off points
- ARRA Compliant: X
- Buy American Compliant: X
- Catalog Number: MPDB66563
- Connection: Box To Box
- Country of Origin: MX
- Currency: USD
- Dimensions: 5.2 in L x 4 in W x 2.62 in H
- EU RoHS Indicator: Y
- Finish: Tin Plated
- Gross Volume Per Pack: 52.85
- Gross Weight Per Pack: 3.4000 lb
- Gross Weight per Pack Metric: 1.54
- Gross Weight UOM Metric: kg
- Harmonization Tariff Schedule Code: 8536904000
- Height: 3.25 in
- Height [Metric]: 82.5500 mm
- Length: 3.08 in
- Length [Metric]: 78.2320 mm
- Mounting: Direct Screw Mount
- Primary Connections|Pole: 1
- Secondary Connection|Pole: 6
- Series: MPDB
- Short Circuit Current Rating: 100 kA
- Size: 3.08 x 5.28 x 3.25 in
- Standard: UL Listed - File E352417 CSA Certified - Class 6228 01 RoHS Compliant
- Standards: RoHS CompliantUL 1953 File No. E352417CSA Class 6228-01
- Type: Open-Style Power Distribution Blocks
- UNSPSC: 39121410
- UPC 11: 78200145417
- UPC 12: 78200145417
- Width: 5.28 in
- Width [Metric]: 134.1120 mm
- Stock Status: NONSTOCK
- Brand: Ferraz Shawmut
- Manufacturer: Ferraz Shawmut
- Amperage Rating: 175 A
- Material: Polycarbonate
- Voltage Rating: 600 VAC
- Wire Size: 14 to 2/0 AWG
- Number Of Poles: 3
- Applications
- Features
Cable splicing Splitting primary power into secondary circuits Fixed junction tap-off points |
• Adder Poles: All sizes have optional adder poles for increased flexibility and ease-of-use. Adder poles can be stacked to form multi-pole units in the field witho ut the use of tools. Adder poles allow for customization of primary and secondary wire combinations. End barriers are also available for sale, catalog numbers can be found in the catalog number selection tables for each size block • Wire Connectors: Standard aluminum and copper wire connectors are available. Aluminum connectors accept both AL or CU wire while copper connectors accept CU wire only. Connectors are all 1-piece tin-plated • Insulators: Insulators are virtually unbreakable, made of glass-filled polycarbonate. “Seethrough,” hinged safety covers are optional and provide a greater degree of safety and shock resistance where required. Hinged covers can be installed without tools • Spacings: 1 inch through air and 2 inches over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL508A • Safety Covers: Polycarbonate safety covers provide dead-front protection. One cover is needed for each pole. Each cover has a test probe hole in the center for circuit checking. Covers are optional accessories and catalog numbers can be found in the catalog selection tables for each size block |
All sizes have optional adder poles for increased flexibility and ease-of-use |
Adder poles can be stacked to form multi-pole units in the field without the use of tools, adder poles allow for customization of primary and secondary wire combinations |
End barriers are also available for sale, catalog numbers can be found in the catalog number selection tables for each size block |
Aluminum connectors accept both aluminum or copper wire while copper connectors accept copper wire only and all 1-piece tin plated |
Insulators are virtually unbreakable, made of glass filled polycarbonate, "see-through" hinged safety covers are optional and provide a greater degree of safety and shock resistance where required, hinged covers can be installed without tools |
1 in through air and 2 in over surface between uninsulated live parts of opposite polarity meets requirements for feeder and branch circuit applications of UL 508A |
Polycarbonate safety covers provide dead front protection |
One cover is needed for each pole |
Each cover has a test probe hole in the center for circuit checking |
Covers are optional accessories and catalog numbers can be found in the catalog selection tables for each size block |
Tin plated copper contact |
