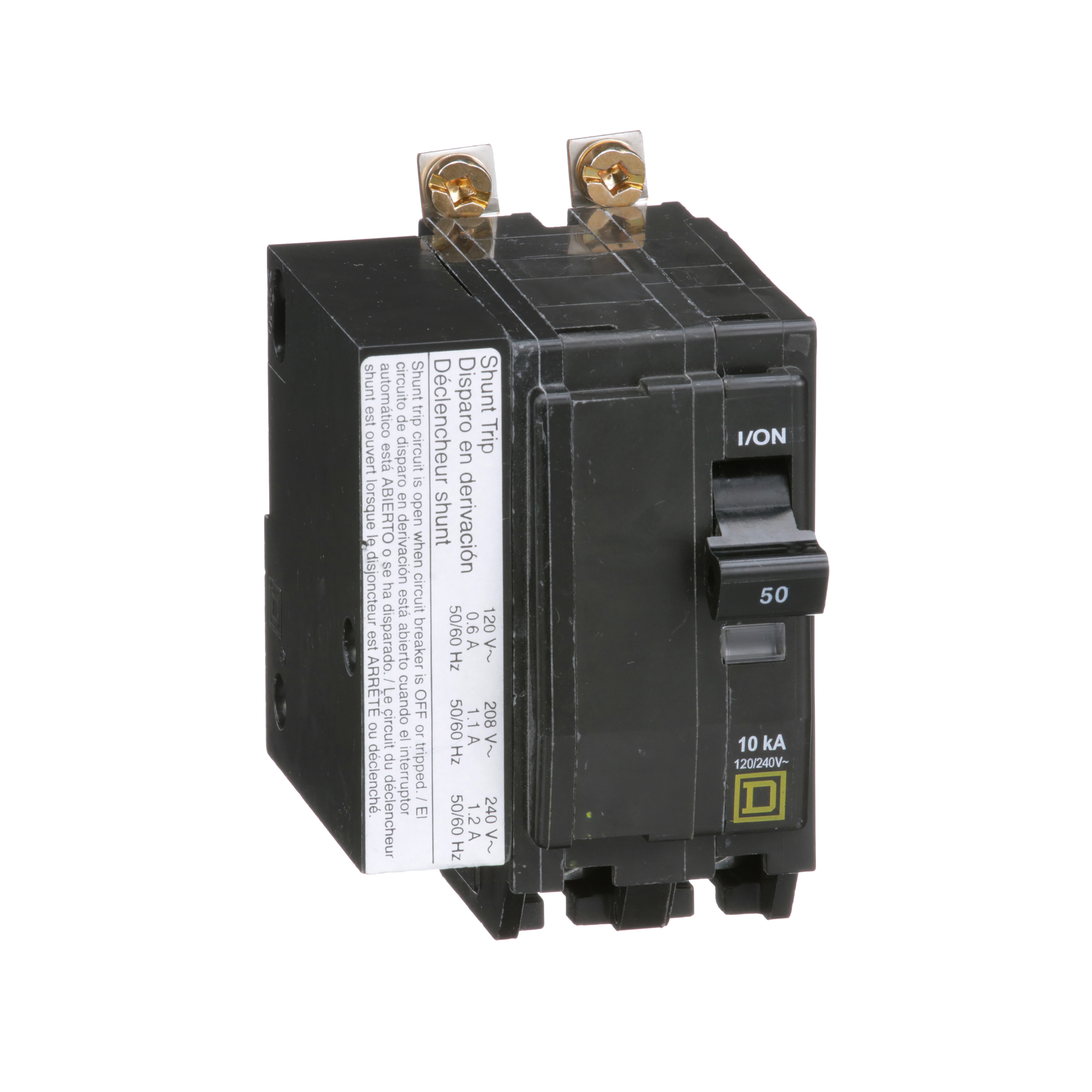

Square D™ QOB2501021 Miniature Circuit Breaker, 240 VAC/48 VDC, 50 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™ QOB2501021 Miniature Circuit Breaker, 240 VAC/48 VDC, 50 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
SKU131398
MFGR #QOB2501021
Your Cost: $306.48/ea
Square D QOB2501021 MINIATURE CIRCUIT BREAKER 120/240V 50A,1-Phase,10kA,120/240 Vac,50A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Bolt-On,UL Listed - CSA Certified
Square D QOB2501021 MINIATURE CIRCUIT BREAKER 120/240V 50A,1-Phase,10kA,120/240 Vac,50A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Bolt-On,UL Listed - CSA Certified
Alternate Catalog Number QOB2501021 Application HACR RATED ARRA Compliant N Buy American Compliant N Catalog Number QOB2501021 Connection BOX LUGS #8 TO #2 AWG(AL/CU) Connection Type Box Lug Country of Origin MX Currency USD Dimensions 2.91 in L EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 54.28 Gross Volume per Pack Metric 889.57 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 949.9900 lb Gross Weight per Pack Metric 430.91 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 8.1280 in Height [Metric] 8.1280 cm Item Group 00015 Length 11.4300 in Length [Metric] 11.4300 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401053&lang=en-us Mounting Type Bolt-On Number Of Poles 2 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov Sub Brand QO Temperature Rating 104 °F Type Standard UNSPSC 39121603 UPC 11 78590149434 UPC 12 785901494348 Warranty Description Contractual Warranty:18 months Width 8.8900 in Width [Metric] 8.8900 cm Wire Size 8 to 2 AWG Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 50 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 120/240 VAC HACR rated STANDARD BOLT-ON QO™ and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboards QO™ and QOB circuit breakers have Visi-Trip™ feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit Common trip 120/208/240 VAC shunt trip
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QOB2501021 |
| Application | HACR RATED |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QOB2501021 |
| Connection | BOX LUGS #8 TO #2 AWG(AL/CU) |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.91 in L |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 54.28 |
| Gross Volume per Pack Metric | 889.57 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 949.9900 lb |
| Gross Weight per Pack Metric | 430.91 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 8.1280 in |
| Height [Metric] | 8.1280 cm |
| Item Group | 00015 |
| Length | 11.4300 in |
| Length [Metric] | 11.4300 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=401053&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL 489 File No. E84967CSA C22.2 No. 5NEMA AB1Federal Specification W-C-375B/GENNOM/ANCE CertifiedHACR RatedPROP65: Cancer and Reproductive Harm - www.p65Warnings.ca.gov |
| Sub Brand | QO |
| Temperature Rating | 104 °F |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590149434 |
| UPC 12 | 785901494348 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.8900 in |
| Width [Metric] | 8.8900 cm |
| Wire Size | 8 to 2 AWG |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 50 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| HACR rated |
| STANDARD BOLT-ON |
| QO™ and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication |
| The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously |
| Bolt-on QOB circuit breakers are for use in NQO and NQOD panelboards |
| QO™ and QOB circuit breakers have Visi-Trip™ feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit |
| Common trip |
| 120/208/240 VAC shunt trip |
