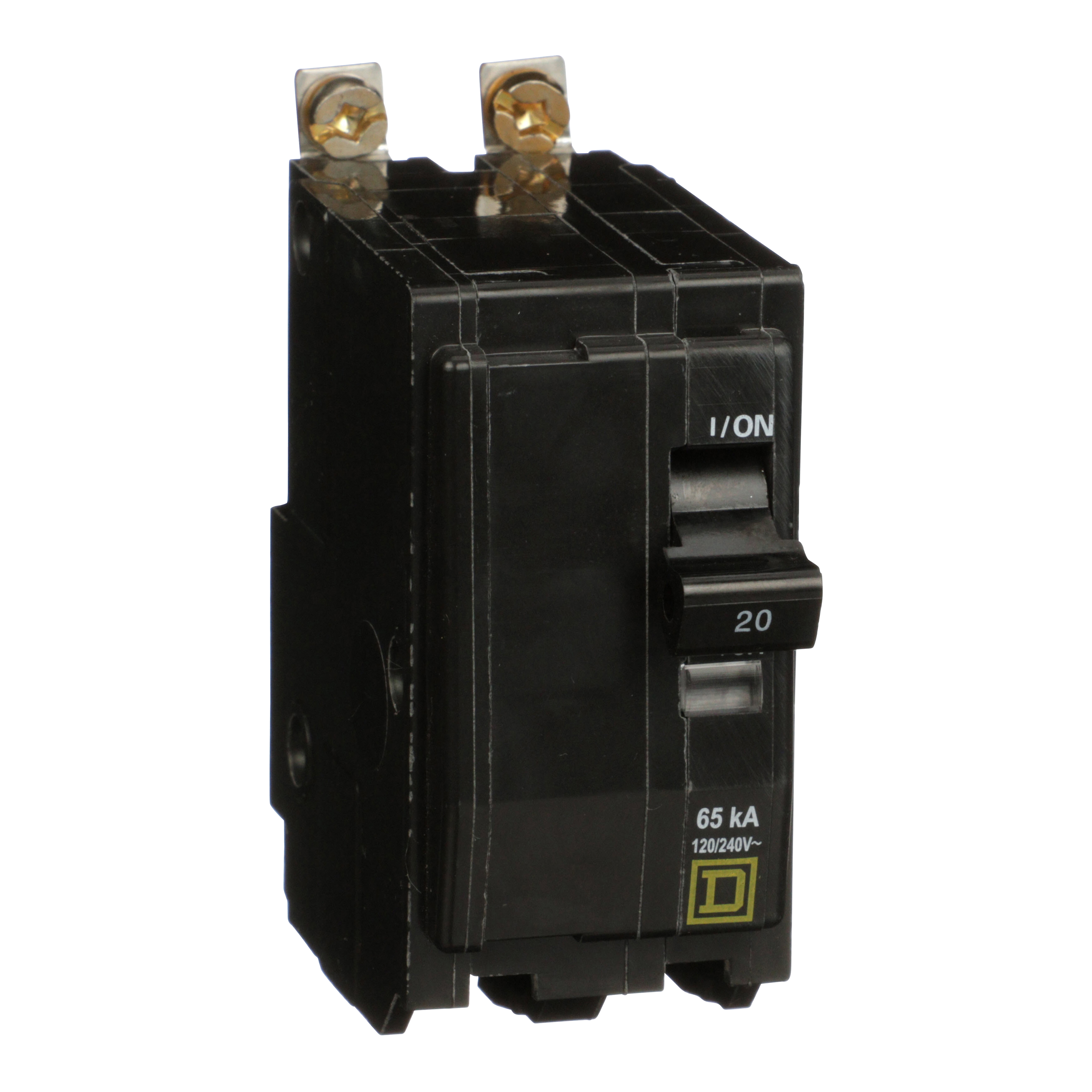

Square D™ QHB220 Type QHB Miniature Circuit Breaker, 120/240 VAC, 20 A, 65 kA at 120/240 VAC Interrupt, 2 Poles
Custom_Product_Images_Illustration
Square D™ QHB220 Type QHB Miniature Circuit Breaker, 120/240 VAC, 20 A, 65 kA at 120/240 VAC Interrupt, 2 Poles
SKU141158
MFGR #QHB220
Your Cost: $377.02/ea
Square D QHB220 MINIATURE CIRCUIT BREAKER 120/240V 20A,120/240 Vac,20A,65kA,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,Standard Bolt-On,UL Listed - CSA Certified
Square D QHB220 MINIATURE CIRCUIT BREAKER 120/240V 20A,120/240 Vac,20A,65kA,Miniature Circuit Breaker,Pressure Plate #14 to #8 AWG(Al/Cu),QO,Standard Bolt-On,UL Listed - CSA Certified
Alternate Catalog Number QHB220 Application HACR rated ARRA Compliant N Buy American Compliant N Catalog Number QHB220 Connection PRESSURE PLATE #14 TO #8 AWG(AL/CU) Country of Origin MX Currency USD EU RoHS Indicator Y Gross Volume Per Pack 17.34 Gross Volume per Pack Metric 284.15 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 0.5500 lb Gross Weight per Pack Metric 249.48 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 8.6360 in Height [Metric] 8.6360 cm Item Group 00015 Length 3.8100 in Length [Metric] 3.8100 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398239&lang=en-us Number Of Poles 2 Operating Temperature 40 °C Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA, Buy American Act, RoHS Compliant, CSA 22.2 No. 5, Federal Specification W-C-375B/GEN, HACR Rated, NOM/ANCE, UL 489 File No. E84967 Sub Brand QO Type MINIATURE CIRCUIT BREAKER UNSPSC 39121603 UPC 11 78590134163 UPC 12 785901341635 Warranty Description Contractual Warranty:18 months Width 8.6360 in Width [Metric] 8.6360 cm Stock Status NONSTOCK Brand Square D™ Manufacturer Schneider Electric Amperage Rating 20 A Interrupt Rating 65KA Voltage Rating 120/240 VAC HACR rated STANDARD BOLT-ON Designed for superior safety, quality, and reliability Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection Saves space - compact 3/4 in W design for small system footprint Faster installation - fewer connections Frees gutter space - no pigtails with the innovative plug-on neutral design Easier troubleshooting - time saver diagnostics provide additional circuit information at the touch of a button
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QHB220 |
| Application | HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QHB220 |
| Connection | PRESSURE PLATE #14 TO #8 AWG(AL/CU) |
| Country of Origin | MX |
| Currency | USD |
| EU RoHS Indicator | Y |
| Gross Volume Per Pack | 17.34 |
| Gross Volume per Pack Metric | 284.15 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 0.5500 lb |
| Gross Weight per Pack Metric | 249.48 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 8.6360 in |
| Height [Metric] | 8.6360 cm |
| Item Group | 00015 |
| Length | 3.8100 in |
| Length [Metric] | 3.8100 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398239&lang=en-us |
| Number Of Poles | 2 |
| Operating Temperature | 40 °C |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA, Buy American Act, RoHS Compliant, CSA 22.2 No. 5, Federal Specification W-C-375B/GEN, HACR Rated, NOM/ANCE, UL 489 File No. E84967 |
| Sub Brand | QO |
| Type | MINIATURE CIRCUIT BREAKER |
| UNSPSC | 39121603 |
| UPC 11 | 78590134163 |
| UPC 12 | 785901341635 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 8.6360 in |
| Width [Metric] | 8.6360 cm |
| Stock Status | NONSTOCK |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 20 A |
| Interrupt Rating | 65KA |
| Voltage Rating | 120/240 VAC |
| HACR rated |
| STANDARD BOLT-ON |
| Designed for superior safety, quality, and reliability |
| Engineered with the quality and craftsmanship that have made Square D™ the preferred brand of electrician and homeowners |
| First and only offer in the market to put the game changing Visi-Trip™ on all the circuit breakers for easy trip detection |
| Saves space - compact 3/4 in W design for small system footprint |
| Faster installation - fewer connections |
| Frees gutter space - no pigtails with the innovative plug-on neutral design |
| Easier troubleshooting - time saver diagnostics provide additional circuit information at the touch of a button |
