Square D™

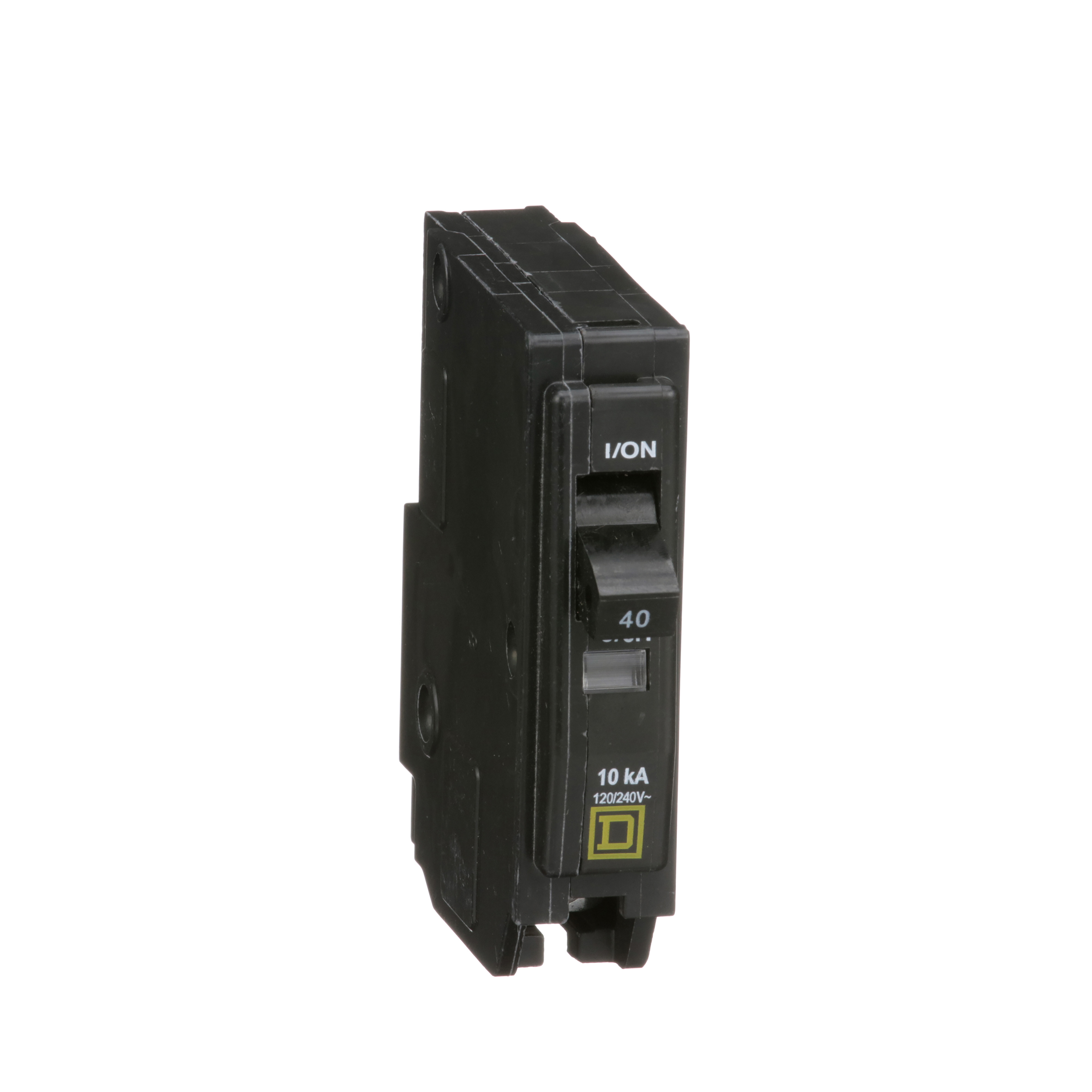

Square D™ Homeline™ QO® Standard Miniature Circuit Breaker, 120/240 VAC, 40 A, 10 kA Interrupt, 1 Pole
Custom_Product_Images_Illustration
Square D™
Square D™ Homeline™ QO® Standard Miniature Circuit Breaker, 120/240 VAC, 40 A, 10 kA Interrupt, 1 Pole
SKU33195
MFGR #QO140
Your Cost: $17.31/ea
List: Square D QO140 MINIATURE CIRCUIT BREAKER 120/240V 40A,1-Phase,10kA,120/240 Vac,40A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Plug-On,UL Listed - CSA Certified
Square D QO140 MINIATURE CIRCUIT BREAKER 120/240V 40A,1-Phase,10kA,120/240 Vac,40A,Box Lugs #8 to #2 AWG(Al/Cu),Miniature Circuit Breaker,QO,Standard Plug-On,UL Listed - CSA Certified
Alternate Catalog Number QO140 Application HACR rated ARRA Compliant N Buy American Compliant N Catalog Number QO140 Connection BOX LUGS #8 TO #2 AWG(AL/CU) Connection Type Box Lug Country of Origin MX Currency USD Dimensions 2.91 in L x 0.75 in W x 3 in H EU RoHS Indicator Y Frequency Rating 50/60 Hz Gross Volume Per Pack 8.71 Gross Volume per Pack Metric 142.76 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 540.1300 lb Gross Weight per Pack Metric 245.00 Gross Weight UOM Metric g Harmonization Tariff Schedule Code 8536200040 Height 0.2030 in Item Group 00104 Length 0.8380 in Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398669&lang=en-us Mounting Type Plug-On Number Of Poles 1 Operating Temperature 40 °C Phase 1 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedHACR RatedPPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov Sub Brand QO Substitute Product Catalog Number QO1PAF Temperature Rating 104 °F Type Standard UNSPSC 39121603 UPC 11 78590140018 UPC 12 785901400189 Warranty Description Contractual Warranty:18 months Width 0.8380 in Wire Size 8 to 2 AWG Stock Status NORMALLY STOCKED Brand Square D™ Manufacturer Schneider Electric Amperage Rating 40 A Interrupt Rating 10 kA Trip Type Thermal Magnetic Voltage Rating 120/240 VAC HACR RATED STANDARD PLUG-ON QO® and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication Tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously Plug-on QO® circuit breakers are for use in QO® load centers, NQ and NQOD panelboards, OEM mounting bases and Speed-D® switchboard distribution panels QO® and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit 8 to 2 AWG aluminum/copper wire Standard
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | QO140 |
| Application | HACR rated |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | QO140 |
| Connection | BOX LUGS #8 TO #2 AWG(AL/CU) |
| Connection Type | Box Lug |
| Country of Origin | MX |
| Currency | USD |
| Dimensions | 2.91 in L x 0.75 in W x 3 in H |
| EU RoHS Indicator | Y |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 8.71 |
| Gross Volume per Pack Metric | 142.76 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 540.1300 lb |
| Gross Weight per Pack Metric | 245.00 |
| Gross Weight UOM Metric | g |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 0.2030 in |
| Item Group | 00104 |
| Length | 0.8380 in |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=398669&lang=en-us |
| Mounting Type | Plug-On |
| Number Of Poles | 1 |
| Operating Temperature | 40 °C |
| Phase | 1 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedHACR RatedPPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| Sub Brand | QO |
| Substitute Product Catalog Number | QO1PAF |
| Temperature Rating | 104 °F |
| Type | Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590140018 |
| UPC 12 | 785901400189 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 0.8380 in |
| Wire Size | 8 to 2 AWG |
| Stock Status | NORMALLY STOCKED |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 40 A |
| Interrupt Rating | 10 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 120/240 VAC |
| HACR RATED |
| STANDARD PLUG-ON |
| QO® and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication |
| Tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously |
| Plug-on QO® circuit breakers are for use in QO® load centers, NQ and NQOD panelboards, OEM mounting bases and Speed-D® switchboard distribution panels |
| QO® and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit |
| 8 to 2 AWG aluminum/copper wire |
| Standard |
