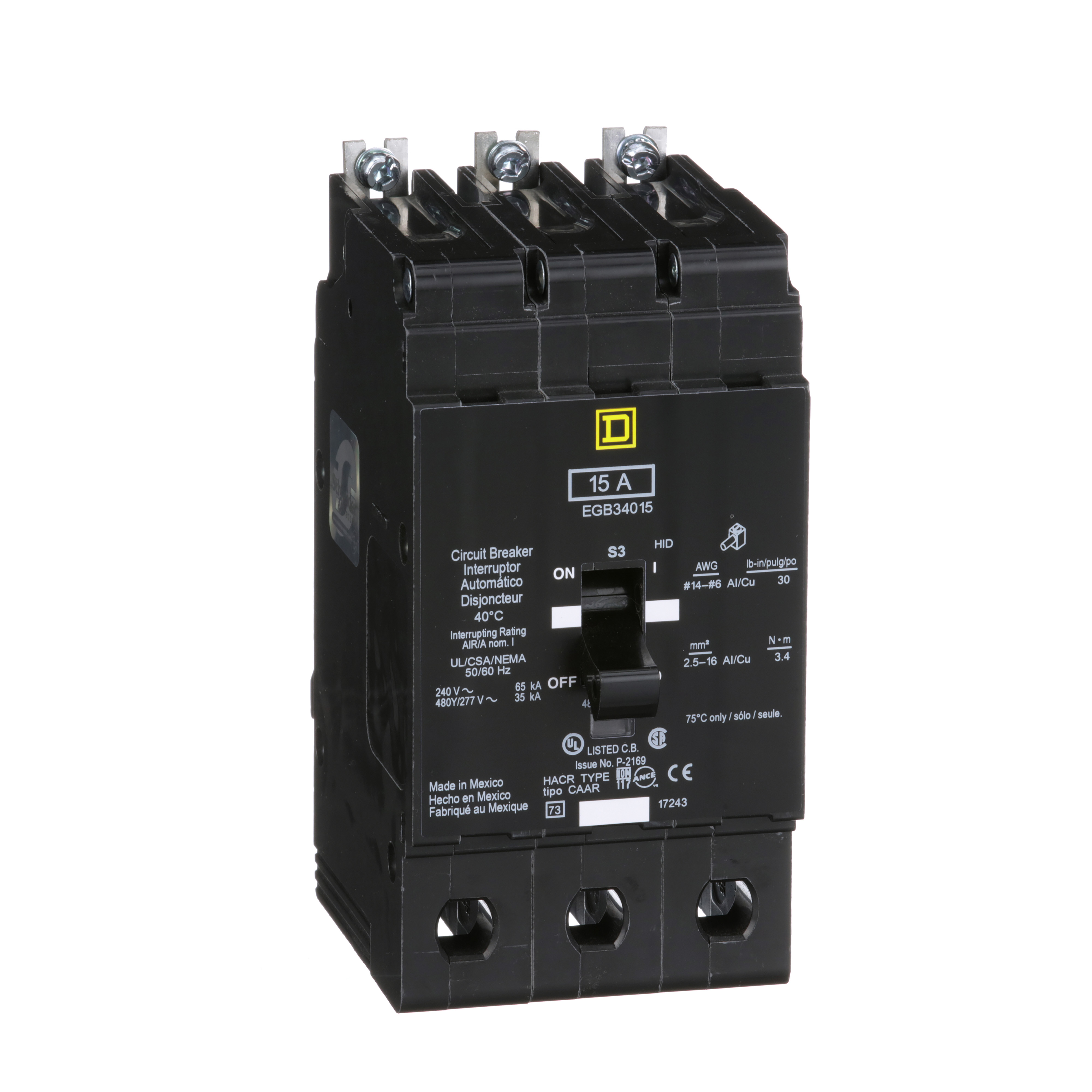

Square D™ EGB34015 Miniature Circuit Breaker, 277/480 VAC, 15 A, 35 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Custom_Product_Images_Illustration
Square D™
Square D™ EGB34015 Miniature Circuit Breaker, 277/480 VAC, 15 A, 35 kA Interrupt, 3 Poles, Thermal Magnetic Trip
SKU62836
MFGR #EGB34015
Your Cost: $1,234.26/ea
Square D EGB34015 MINIATURE CIRCUIT BREAKER 480Y/277V 15A,15A,35kA,Bolt-On,E frame,E-Frame,Hold 270A - Trip 875A,Lugs #12 to #6 AWG(Al) - #14 to #6 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Square D EGB34015 MINIATURE CIRCUIT BREAKER 480Y/277V 15A,15A,35kA,Bolt-On,E frame,E-Frame,Hold 270A - Trip 875A,Lugs #12 to #6 AWG(Al) - #14 to #6 AWG(Cu),Molded Case Circuit Breaker,Provides overload and short circuit protection,UL Listed - CSA Certified
Alternate Catalog Number EGB34015 Application HID rated;HACR rated; NF panelboard ARRA Compliant N Buy American Compliant N Catalog Number EGB34015 Connection LUGS #12 TO #6 AWG(AL) - #14 TO #6 AWG(CU) Connection Type Lug Country of Origin MX Currency USD Depth 4.05 in Dimensions 4.05 in L x 2.94 in W x 5.66 in H EU RoHS Indicator Y Frame E Frequency Rating 50/60 Hz Gross Volume Per Pack 289.87 Gross Volume per Pack Metric 4750.10 Gross Volume UOM CI Gross Volume UOM Metric cm3 Gross Weight Per Pack 3.5970 lb Gross Weight per Pack Metric 1.66 Gross Weight UOM Metric kg Harmonization Tariff Schedule Code 8536200040 Height 12.1920 in Height [Metric] 12.1920 cm Item Group 00936 Length 24.6380 in Length [Metric] 24.6380 cm Material Composition Declaration https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253527&lang=en-us Mounting Type Bolt-On Number Of Poles 3 Operating Temperature 40 °C Phase 3 Returnable Y Standard UL LISTED - CSA CERTIFIED Standards ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedHACR RatedNOM 117PPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov Sub Brand E FRAME Substitute Product Catalog Number HPAFD Temperature Rating 104 °F Trip Range 270 to 875 A Type Molded Case Standard UNSPSC 39121603 UPC 11 78590131113 UPC 12 785901311133 Warranty Description Contractual Warranty:18 months Width 15.7480 in Width [Metric] 15.7480 cm Wire Size 12 to 6 AWG, 14 to 6 AWG Stock Status NORMALLY STOCKED Brand Square D™ Manufacturer Schneider Electric Amperage Rating 15 A Interrupt Rating 35 kA Trip Type Thermal Magnetic Voltage Rating 277/480Y VAC HID rated;HACR rated; NF panelboard BOLT-ON Visi-Trip® trip indicator 270 A hold, 875 A trip current For merchandised NF panelboards 12 to 6 AWG aluminum, 14 to 6 AWG copper
content loaded
content loaded
content loaded
content loaded
content loaded
- Attributes
- Documents & Resources
- Applications
- Features
- Substitute Products
| Alternate Catalog Number | EGB34015 |
| Application | HID rated;HACR rated; NF panelboard |
| ARRA Compliant | N |
| Buy American Compliant | N |
| Catalog Number | EGB34015 |
| Connection | LUGS #12 TO #6 AWG(AL) - #14 TO #6 AWG(CU) |
| Connection Type | Lug |
| Country of Origin | MX |
| Currency | USD |
| Depth | 4.05 in |
| Dimensions | 4.05 in L x 2.94 in W x 5.66 in H |
| EU RoHS Indicator | Y |
| Frame | E |
| Frequency Rating | 50/60 Hz |
| Gross Volume Per Pack | 289.87 |
| Gross Volume per Pack Metric | 4750.10 |
| Gross Volume UOM | CI |
| Gross Volume UOM Metric | cm3 |
| Gross Weight Per Pack | 3.5970 lb |
| Gross Weight per Pack Metric | 1.66 |
| Gross Weight UOM Metric | kg |
| Harmonization Tariff Schedule Code | 8536200040 |
| Height | 12.1920 in |
| Height [Metric] | 12.1920 cm |
| Item Group | 00936 |
| Length | 24.6380 in |
| Length [Metric] | 24.6380 cm |
| Material Composition Declaration | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=423253527&lang=en-us |
| Mounting Type | Bolt-On |
| Number Of Poles | 3 |
| Operating Temperature | 40 °C |
| Phase | 3 |
| Returnable | Y |
| Standard | UL LISTED - CSA CERTIFIED |
| Standards | ARRA CompliantBuy American Act CompliantRoHS CompliantUL ListedCSA CertifiedHACR RatedNOM 117PPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
| Sub Brand | E FRAME |
| Substitute Product Catalog Number | HPAFD |
| Temperature Rating | 104 °F |
| Trip Range | 270 to 875 A |
| Type | Molded Case Standard |
| UNSPSC | 39121603 |
| UPC 11 | 78590131113 |
| UPC 12 | 785901311133 |
| Warranty Description | Contractual Warranty:18 months |
| Width | 15.7480 in |
| Width [Metric] | 15.7480 cm |
| Wire Size | 12 to 6 AWG, 14 to 6 AWG |
| Stock Status | NORMALLY STOCKED |
| Brand | Square D™ |
| Manufacturer | Schneider Electric |
| Amperage Rating | 15 A |
| Interrupt Rating | 35 kA |
| Trip Type | Thermal Magnetic |
| Voltage Rating | 277/480Y VAC |
| HID rated;HACR rated; NF panelboard |
| BOLT-ON |
| Visi-Trip® trip indicator |
| 270 A hold, 875 A trip current |
| For merchandised NF panelboards |
| 12 to 6 AWG aluminum, 14 to 6 AWG copper |
